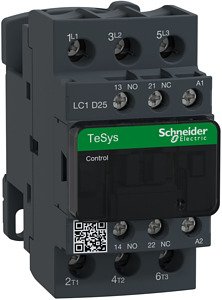

Code: LC1D25P7
EEW Ltd, stocks a range of LC1D25P7,Contactor, 230 VAC, 3 Pole, DPDT, DIN Rail, 40 A, 230 V. Explore the full rage here with easy online ordering and quick delivery
€136.81 incl. VAT
In Stock
QtyAdd
| Depth | 92 mm |
|---|---|
| Height | 85 mm |
| Modular version | false |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Operating voltage AC 50 Hz | 440...440 V |
| Operating voltage AC 60 Hz | 440...440 V |
| Rated control supply voltage AC 50 Hz | 230...230 V |
| Rated control supply voltage AC 60 Hz | 230...230 V |
| Rated operation current Ie at AC-1, 400 V | 40 A |
| Rated operation current Ie at AC-3, 400 V | 25 A |
| Rated operation power at AC-3, 400 V | 11 kW |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Width | 45 mm |
