Code: LC1D18F7

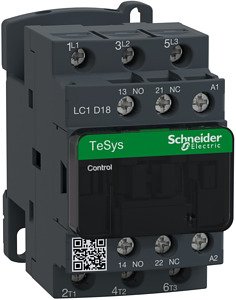

EEW Ltd, stocks a range of LC1D18F7,Contactor, 110 VAC, 3 Pole, DPDT, DIN Rail, 32 A, 110 V. Explore the full rage here with easy online ordering and quick delivery
Available to Order
Product unavailable to purchase online. Please contact your local branch to order.
| Depth | 86 mm |
|---|---|
| Height | 77 mm |
| Modular version | false |
| Number of auxiliary contacts as normally closed contact | 1 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of normally closed contacts as main contact | 0 |
| Number of normally open contacts as main contact | 3 |
| Operating voltage AC 50 Hz | 440...440 V |
| Operating voltage AC 60 Hz | 440...440 V |
| Rated control supply voltage AC 50 Hz | 110...110 V |
| Rated control supply voltage AC 60 Hz | 110...110 V |
| Rated operation current Ie at AC-1, 400 V | 32 A |
| Rated operation current Ie at AC-3, 400 V | 18 A |
| Rated operation power at AC-3, 400 V | 7.5 kW |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | AC |
| Width | 45 mm |
