Code: VCF4

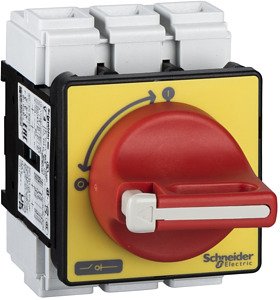

EEW Ltd, stocks a range of VCF4,3 Pole Non Fused Isolator Switch, 80 A, 37 W, IP20, IP65. Explore the full rage here with easy online ordering and quick delivery
Available to Order
Product unavailable to purchase online. Please contact your local branch to order.
| Colour control element | Red |
|---|---|
| Conditioned rated short-circuit current Iq | 10 kA |
| Degree of protection (IP), front side | IP65 |
| Depth | 114 mm |
| Device construction | Built-in device fixed built-in technique |
| Height | 83 mm |
| Interlockable | Yes |
| Max. rated operation voltage Ue AC | 690 V |
| Motor drive integrated | false |
| Motor drive optional | false |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of poles | 3 |
| Number of switches | 1 |
| Rated operating voltage | 690...690 V |
| Rated operation power at AC-23, 400 V | 30 kW |
| Rated operation power at AC-3, 400 V | 22 kW |
| Rated permanent current Iu | 80 A |
| Rated permanent current at AC-21, 400 V | 80 A |
| Rated permanent current at AC-23, 400 V | 57 A |
| Rated short-time withstand current lcw | 0.96 kA |
| Suitable for distribution board installation | Yes |
| Suitable for floor mounting | false |
| Suitable for front mounting 4-hole | Yes |
| Suitable for front mounting centre | false |
| Suitable for intermediate mounting | false |
| Switching power at 400 V | 45 kW |
| Type of control element | Turn button |
| Type of electrical connection of main circuit | Screw connection |
| Version as emergency stop installation | Yes |
| Version as main switch | Yes |
| Version as maintenance-/service switch | false |
| Version as reversing switch | false |
| Version as safety switch | false |
| Voltage release optional | false |
| Width | 60 mm |
| With pre-assembled cabling | false |
